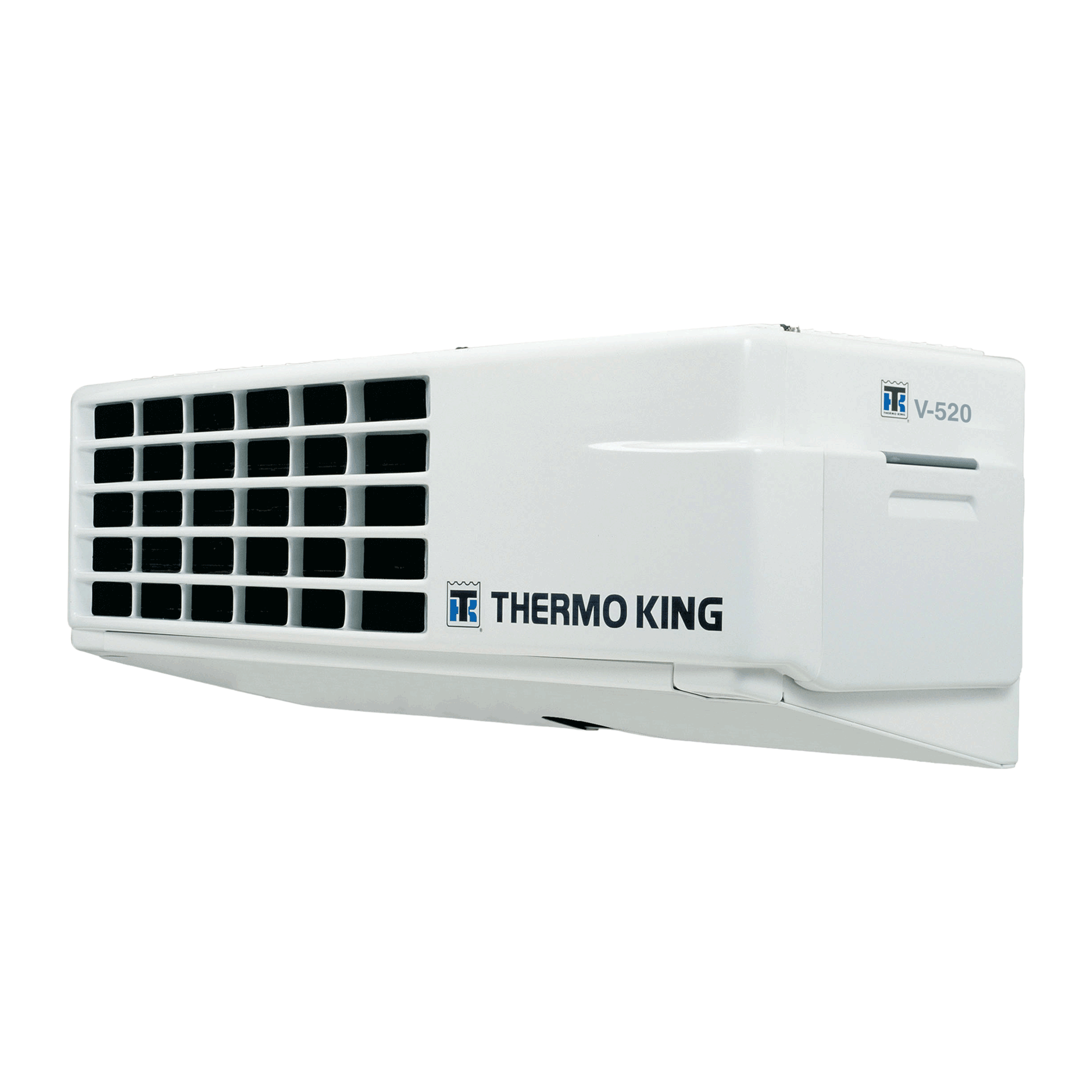

Nose-Mount Medium-Large Cargo Van Refrigeration Unit

The V-520 Nosemount is part of Thermo King’s V-Series direct-drive refrigeration lineup. Powered by the truck engine through an engine-mounted compressor, it is intended for operators requiring reliable refrigerated transport without the dedicated diesel engine used on larger truck refrigeration systems.

For Canadian fleets operating food distribution, grocery delivery, pharmaceutical transport and other temperature-controlled applications, selecting the correct refrigeration configuration depends on required operating temperature, vehicle size, route profile and loading practices. Thermo King Eastern Canada works with fleets to specify the appropriate V-520 configuration, coordinate installation and provide factory-trained service throughout the equipment lifecycle.

Key Benefits

Direct-drive refrigeration system for insulated box trucks
Available for fresh, frozen and multi-temperature applications
Optional SmartPower™ electric standby (230 VAC)
Automatic hot gas defrost

Optional hot gas heating on MAX models
Lightweight design
Long-life condenser fans
Available in 12 VDC and certain 24 VDC configurations (non-standby units only)

Available Options

Door switch kit

Reduces load temperature rise and saves fuel when the vehicle doors are opened by turning off the refrigeration system. Unit will automatically restart when doors are closed.

Din adaptor

The din adaptor box enables the controller to be installed in the vehicle dashboard. The aesthetically-designed box allows the controller to be fitted in any available radio slot.

Hose covers

Highly durable kits providing total protection for hoses and cables while enhancing vehicle appearance. Easily installed on all bodies. Metal and plastic options are available.

Muffler kit

Purpose-designed kit to eliminate transmission of unit vibration and noise into the driver cab. Provides significant gains in driver comfort.

Snow covers

Designed to protect the unit condenser in extreme conditions. The aerodynamically-designed snow cover prevents the buildup of snow and ice on fan blades, avoiding downtime, and additional maintenance costs.

T-520 Nosemount Unit Specs

Refrigeration Capacity

V-520 Nosemount Unit Specs

Refrigeration Capacity

Box Size / Temperature Guide

SIZE

35°F/-2°C

0°F/-18°C

-20°F/-29°C

6 FT

V-220 OR B-100 or E-200

V-220 MAX or E-200

V-320 MAX

8 FT

V-220 OR B-100 or E-200

V-320 MAX

V-320 MAX OR V-520 RT MAX

10 FT

V-320 or E-200

V-320 MAX or V-520 RT MAX

12 FT

V-320 OR V-520 RT

V-320 MAX OR
V-520 MAX OR V-520 RT MAX

V-520 MAX OR V-520 RT MAX

14 FT

V-520 or V-520 RT

V-520 MAX or V-520 RT MAX

V-800 MAX

16 FT

V-520 or V-520 RT

V-520 MAX OR V-520 RT MAX

V-800 MAX

18 FT

V-520 OR V-520 RT

20 FT

22 FT

*Above reference assumes 3” of insulation for 35°F (2°C), 0°F (-18°C) and 4” for -20°F (-29°C); ten door openings per delivery day; box dimensions of 96”W and 96”H on trucks 10’ and over in length.
